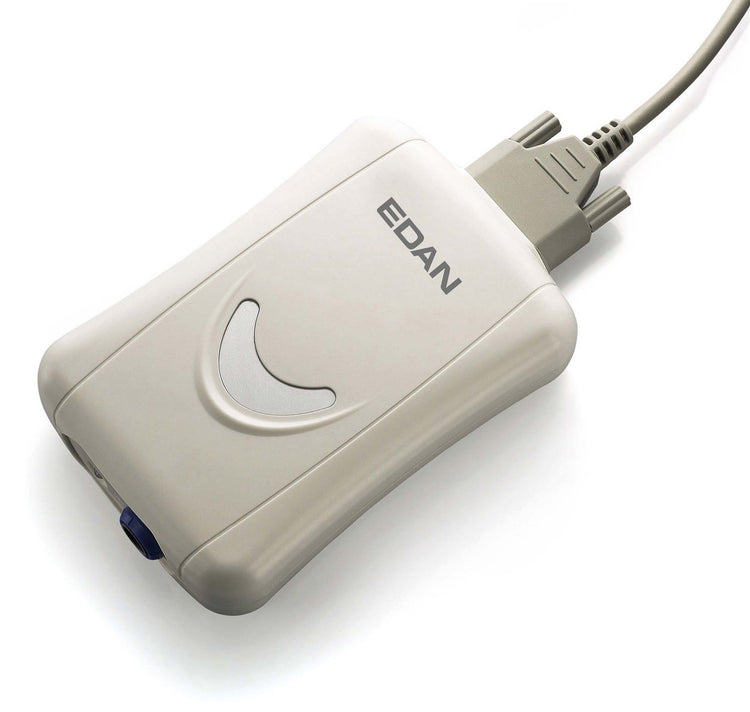

Digital ECG PC SE-1010 - EDAN

Digital ECG PC SE-1010 - Edan

ECG recording modes: manual and automatic with CSE/AHA/MIT tested interpretation.
Recording of all 12 leads simultaneously with 24-bit converter.

Digital filtration:
Bandwidth: 0.05 – 0.15 – 0.25 – 0.32 – 0.5 – 0.67 Hz.
Narrowband: 25/35/45 Hz/OFF.
Main power supply: 75/100/150 Hz.
Sensitivity/amplitude: 2.5/5/10/20,10/5, AGC (mm/mV).

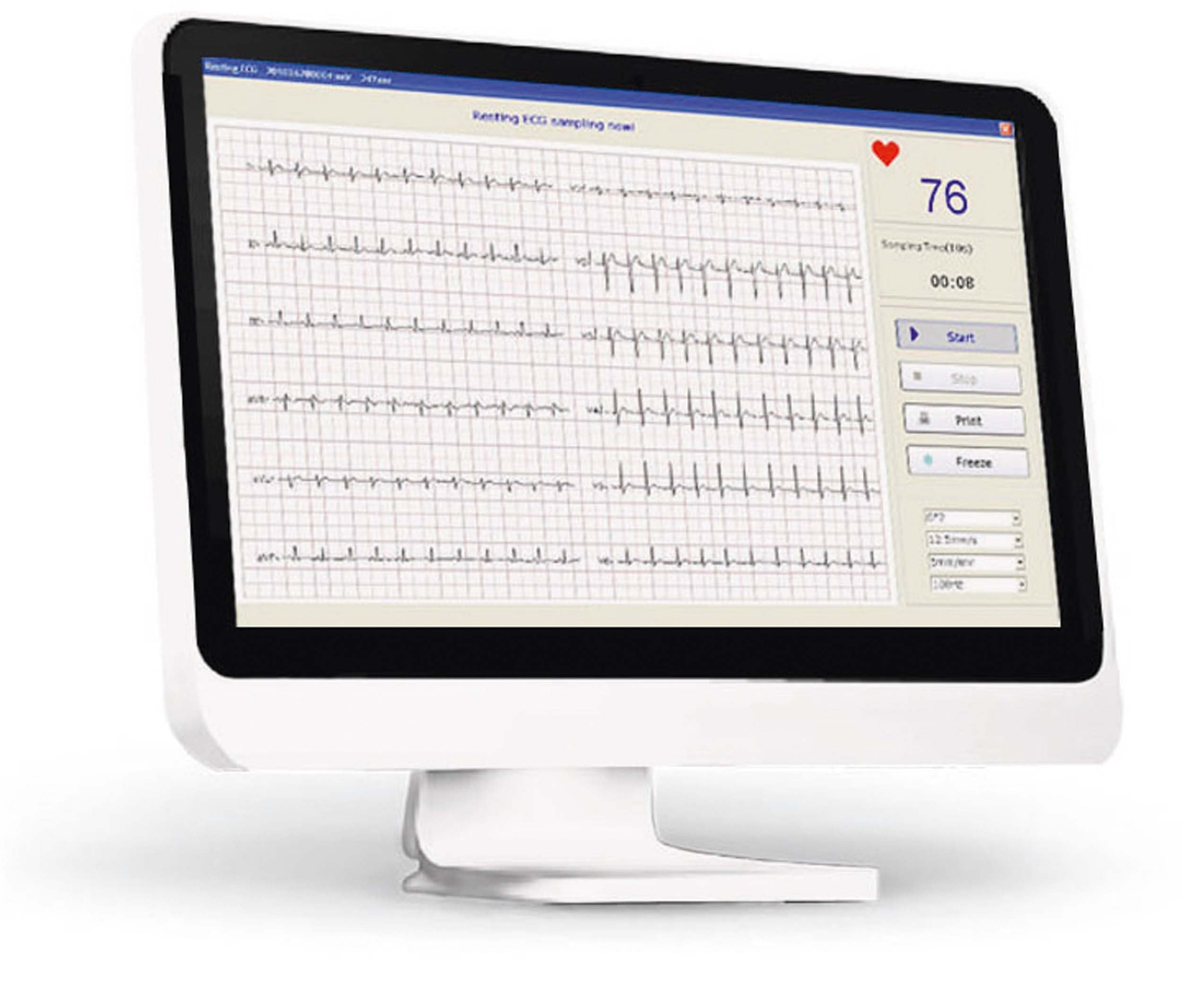

Measurements, calculations and interpretations are included in the multilingual program.

ECG delivered with:

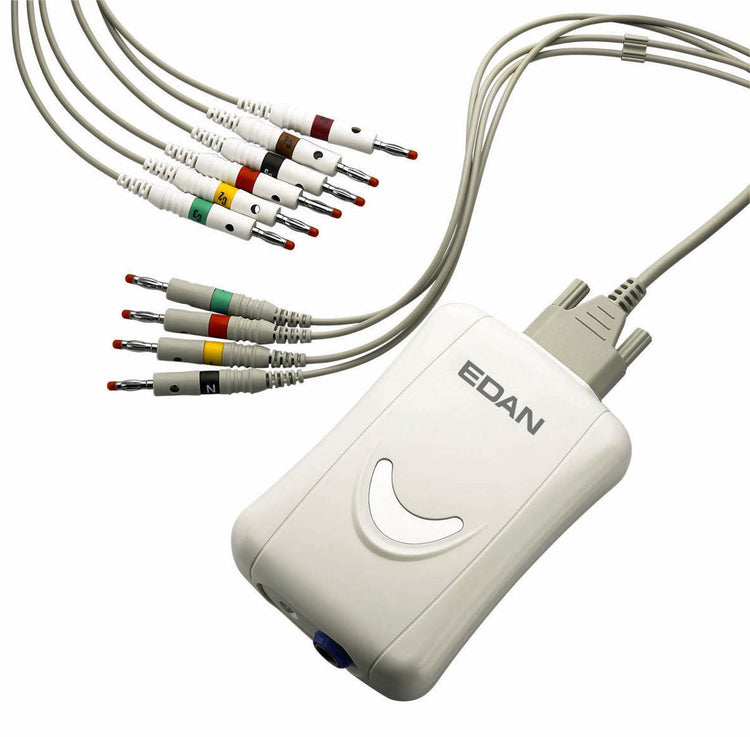

1 x 10-wire banana plug patient cable.
6 precordial electrodes.
4 member clamps.
1 user manual.
Installation CD ROM (XP, Vista, Seven 32 or 64 bits).

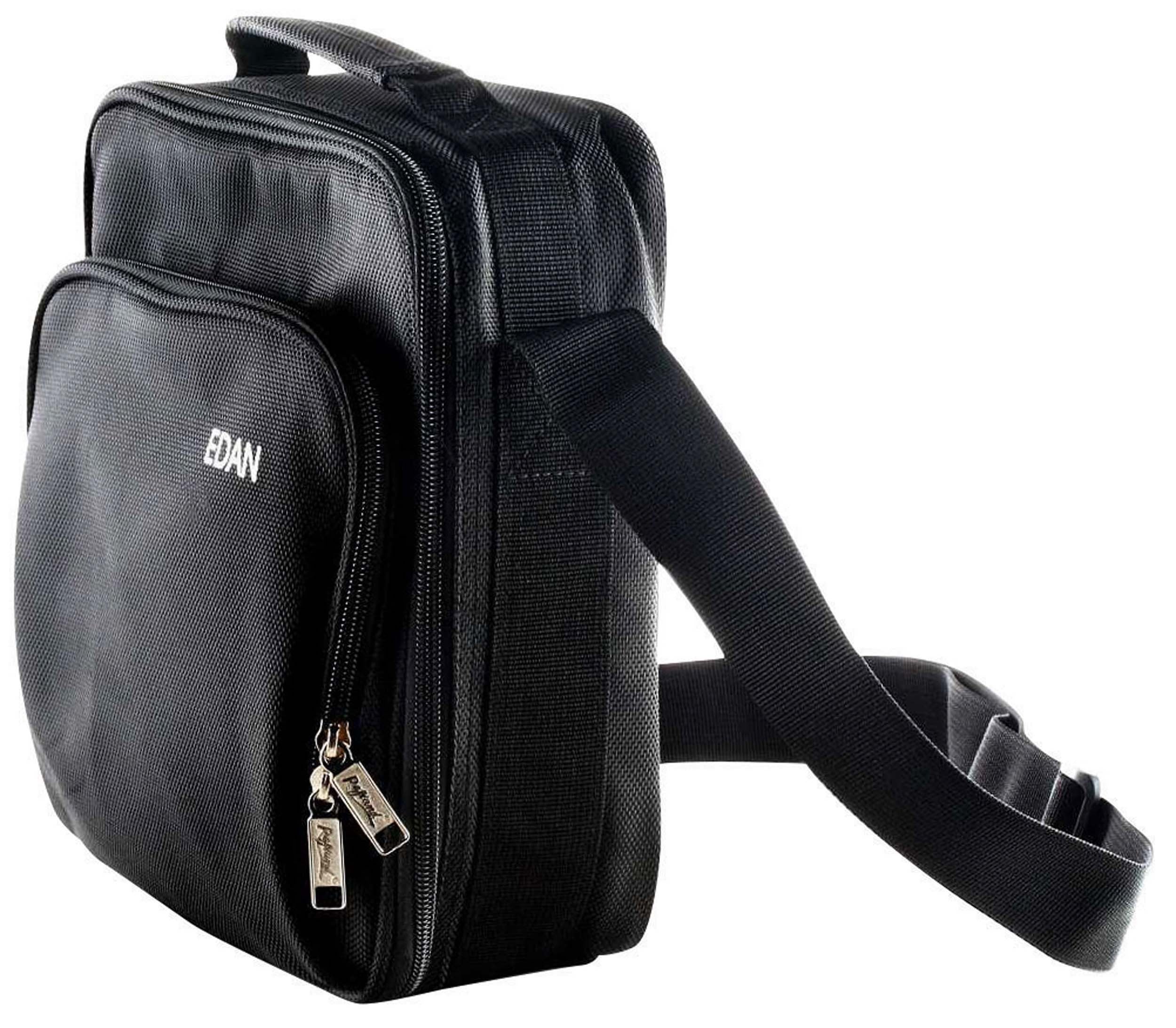

1 carrying bag.
CE / TÜV validation.

Weight: 210 g
Warranty : 3 years
Power supply : via the computer's USB port
