Cardiovit Ft1 touch electrocardiograph - SCHILLER

Cardiovit F1 touch electrocardigraph

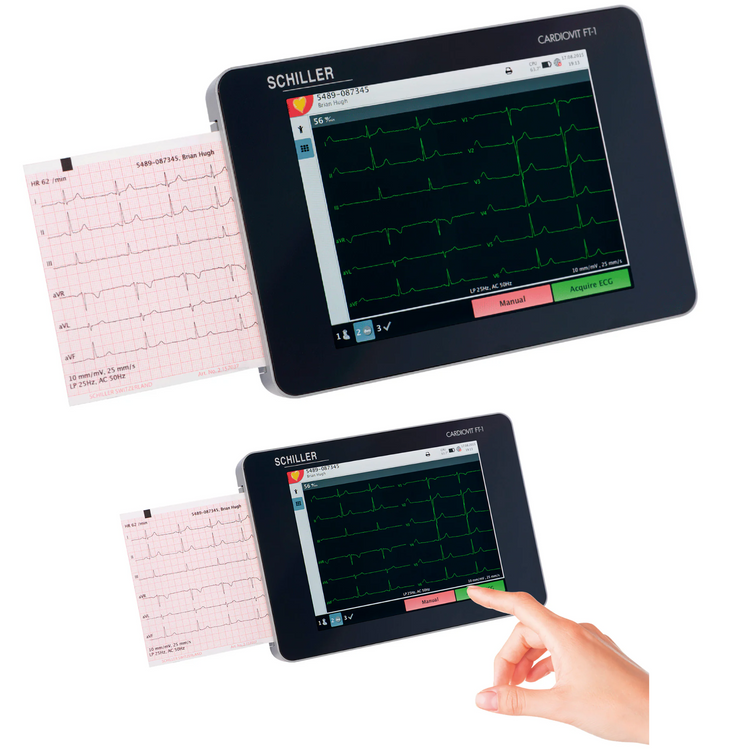

Electrocardiograph with 8'' color touch screen and integrated high-resolution thermal printer.
The multi-touch screen makes entering patient data, recording ECGs and adjusting device settings simple, intuitive and efficient.

• Multi-touch keyboard.
• Compact and lightweight.
• Excellent plot quality: 32,000 Hz sampling rate.
• Bandwidth up to 250 Hz.
• Real-time signal preview and quality check (color code).
• Electrode positioning verification program.
• Detection of inversion of leads.
• Cables and accessories identical to all Schiller ECGs.
• Memory for at least 350 ECG recordings or 100 resting rhythm recordings.
• Interface: Ethernet, WIFI.
• Features :
• Sensitivity: 10 mm/mV.
• ECG speed: 25 / 50 mm/s.
• Printing curve speed: 5 / 12.5 / 25 / 50 mm/s.
• Line filter: 50 or 60 Hz.
• Comes with:
• 10 core patient cable 2 m banana plugs.
• 10-core ECG cable with banana plugs.
• 500 bio adhesive electrodes.
• 10 snap clips.
• Ream of recording paper.
• Mains charger.
• Optional: ETM (computer-assisted ECG interpretation program) for adults and children.
• DM Class IIa
• Weight : 1.1 kg (with paper)
• Warranty : 3 years
• Power supply : 100-240 V mains or battery (autonomy: 350 ECGs)
