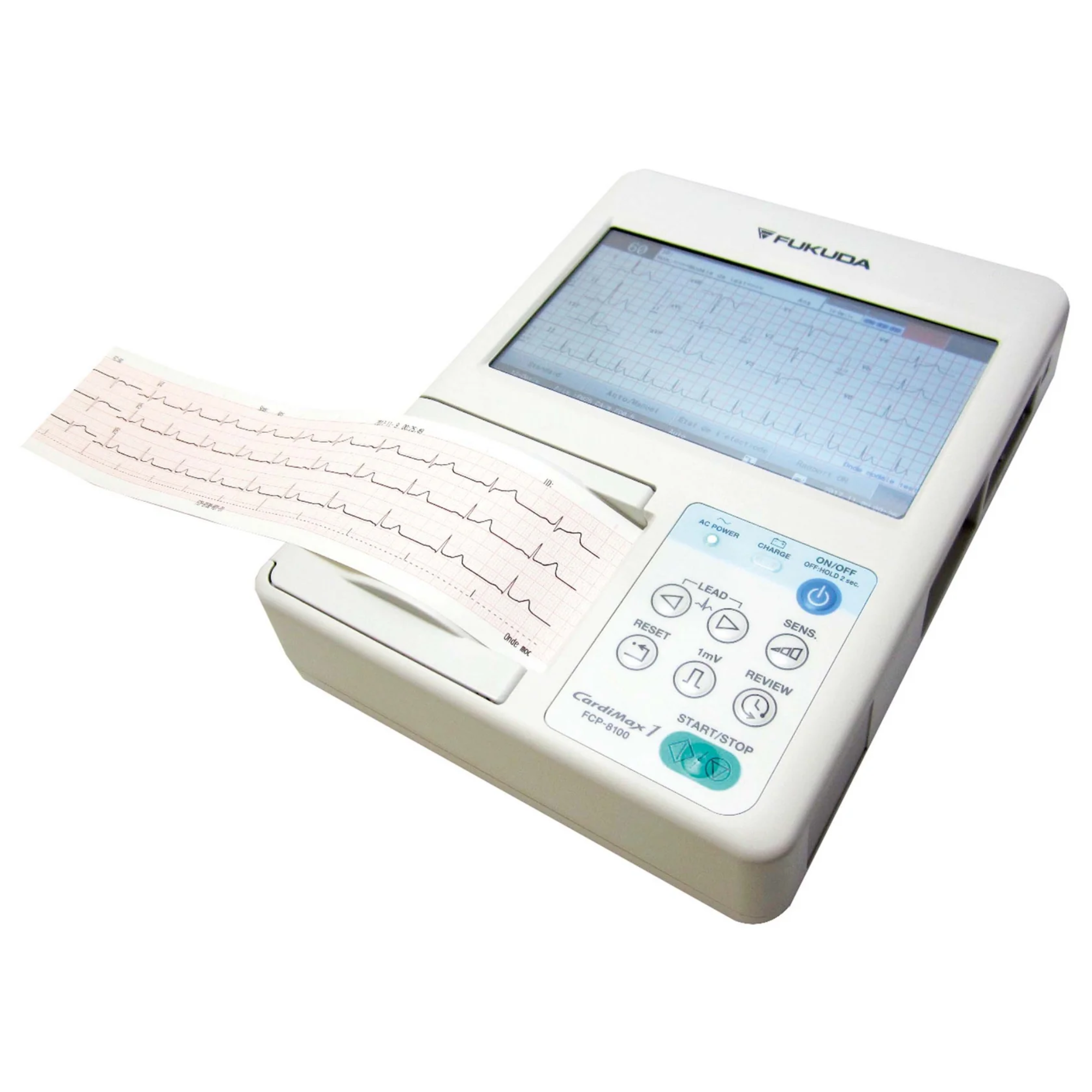

Fukuda 3-Channel Electrocardiograph FCP8100 Bag - FUKUDA

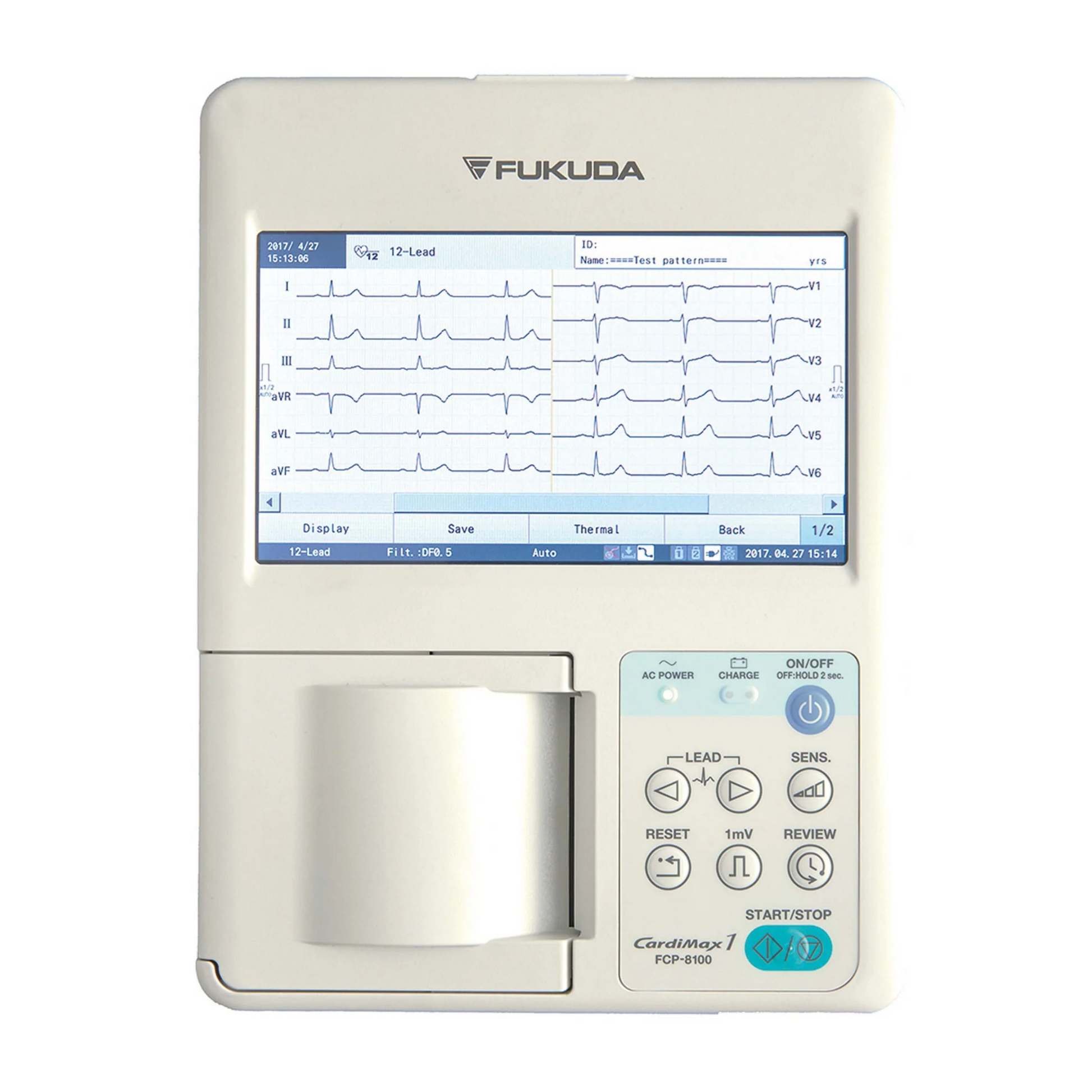

Fuduka 3-Channel Electrocardiograph FCP8100

Parameter measurements + automatic interpretation.

Features :
2 hours of battery life.
Standard 12-lead resting acquisition.
3-lead arrhythmia mode acquisition.
LCD screen L. 115 x W. 86 mm, with 3/6/12 track display.
3-track printing.
Frequency response 0.05 to 150 Hz.
Sampling rate: 8000 Hz/sec/channel.
Alternating current / muscle / respiratory movement filters.
Measures from 30 to 300 beats per minute.
Thermal comb printing, paper width 63mm.
Automatic and manual mode recording.
5 recording speeds.
Automatic interpretation can be disabled (Minnesota Code).
1 Lan output for data extraction on computer in FUKUDA, FDA XML, PDF format (current 2019).
2 x USB 2.0 / 1 x USB 2.0 (for optional USB Wifi).
500 ECG memory.
7-inch color touch screen, 12-lead display.
Alphanumeric keyboard with “touch” keys on screen.
Patient information (Name, ID, age, gender, etc.).
Visual indicator of electrode connection.
Automatic pacemaker detection.
QRS parameter measurements.

Comes with:
A power cable.
A 10-wire patient cable with banana plug.
A set of 4 member clips, 4 colors.
A set of 6 precordial pears.
A user manual.
A bundle of paper.
A bag.

DM Class IIa
Weight : 2 kg (without battery)
Warranty : 3 years (except battery, cable and accessories)
Power supply : mains or battery (2 hours of autonomy)
