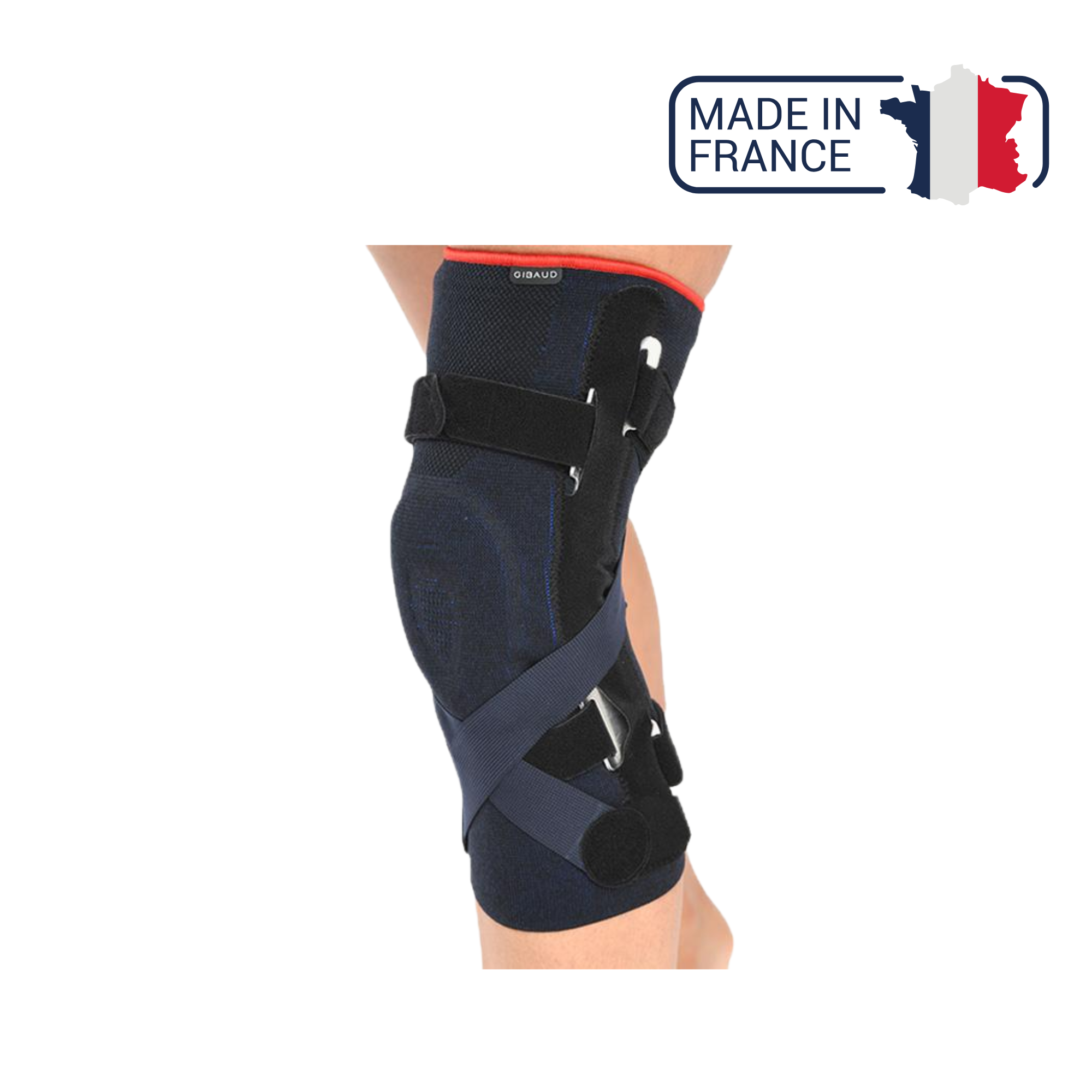

Knee Brace - Genugib® 3D Articulated - Multiple Sizes - Gibaud

Knee Brace - Genugib® 3D Articulated - Multiple Sizes - Gibaud

Description and use
The Genugib® 3D Articulated Knee Brace supports and protects the knee in cases of mild to moderate sprains. Its features allow for optimal resumption of activity and support every movement with ease and comfort.

• 4 straps for 2 installation configurations.
• Ligament ring.
• Polycentric meshed joints.
• Fine seams and decompression zone for easy putting on and putting on.
• one of the openwork knee fold.
• 3D knitting: Finesse.

LPPR code: 7145026
LPPR: €102.29

For knee conditions that may benefit from stability reinforcement, including the following:
• Mild to moderate medial/lateral knee sprains and instabilities.

Precautions for use:
• Should not be worn by people for whom compression is contraindicated.
• This product contains natural rubber latex which may cause allergic reactions.
• The orthosis should not be used in cases where the pathology requires relative or absolute immobilization or surgical intervention.
• Users with medical conditions that limit blood circulation in the limbs (e.g., diabetes or peripheral vascular disease) should consult their physician before using the device.
• Do not wear for prolonged periods without medical supervision.
• The orthosis must not be placed in direct contact with damaged skin.
• This orthosis is a device for single-patient use. Do not reuse on multiple patients.
• When adjusting the straps, adjust to obtain a firm but comfortable fit.
• If any problem occurs while using this orthosis, for example pain or the appearance of local symptoms, remove the orthosis and contact your healthcare professional.
• If any serious incident occurs in connection with the device, the user and/or patient must report it to the manufacturer and to the competent authority in the country concerned.

Set up :
A fitting is mandatory for proper adaptation and a good understanding of the fitting. The initial fitting will be carried out by a healthcare professional and subsequently by the user or someone close to them according to the same protocol. During the fitting, the fitter will have to conform, if necessary, the joints of the orthosis to adapt it to your morphology.
The device is supplied with the 2 elastic straps fitted.

To put on the device:
1. Loosen straps 1, 2 and 3 as much as possible.
2. Put on the orthosis, place the kneecap in the center of the ring (see diagram A). The GIBAUD logo must be placed at the top.
3. Tighten the straps to obtain a firm and comfortable fit according to the order of tightening straps 1, then 2, then 3 (see diagram C), i.e.:
1. The back strap at the bottom.
2. The strap in front at the bottom.
3. The strap in front at the top.
4. For the upper rear part, depending on the configuration chosen:

With straps 4a and 4b (see diagrams B and C):
• Detach the round grip pads from the device.
• Cross straps 4a and 4b behind the thigh and below the kneecap (see diagram C).
• Attach the round grip pads to the designated locations, adjusting the tightening to obtain a firm and comfortable hold.

With the 4c ​​strap (see diagram C):
• Remove straps 4a and 4b and place strap 4c in the same way as straps 1, 2 and 3.
• Adjust the tightening to obtain a firm and comfortable fit.

Maintenance and conservation:
Keep the orthosis away from excessive heat sources.

Before washing:
• Remove all straps, taking care not to snag the gripping ends.
• Remove the underwires through the highest notch (see diagram D). Washing: Hand wash the orthosis in warm soapy water (maximum 40°C); rinse thoroughly; wring gently; do not bleach; dry flat, away from excessive heat sources (e.g. radiator), do not tumble dry; do not iron; do not dry clean.

After washing:
• Insert the reinforcements as previously removed through the highest notches (see diagram D).
• Replace the strap(s) (see diagram C and, if choosing a configuration with elastic straps, ensuring the orientation as shown in diagram B) respecting the strap lengths as indicated (strap 1: medium; strap 2: small; strap 3: large; strap(s) 4: medium or elastic straps).

Dispose of the device and its packaging in accordance with local or national environmental regulations.
